Utility Patent Drawings

One fascinating way to look at our history is by studying the tools we have invented and used throughout the years. There is no better way to do this than by looking at the patent drawings we hold in the Cartographic Branch at the National Archives.

The majority of the patent drawings we have are found in Record Group 241: Utility Patent Drawings. There are about one million drawings in this series, ranging from the 1837 to 1911. These drawings give us a snapshot into what inventors were prioritizing and what cutting edge technology was like at the time.

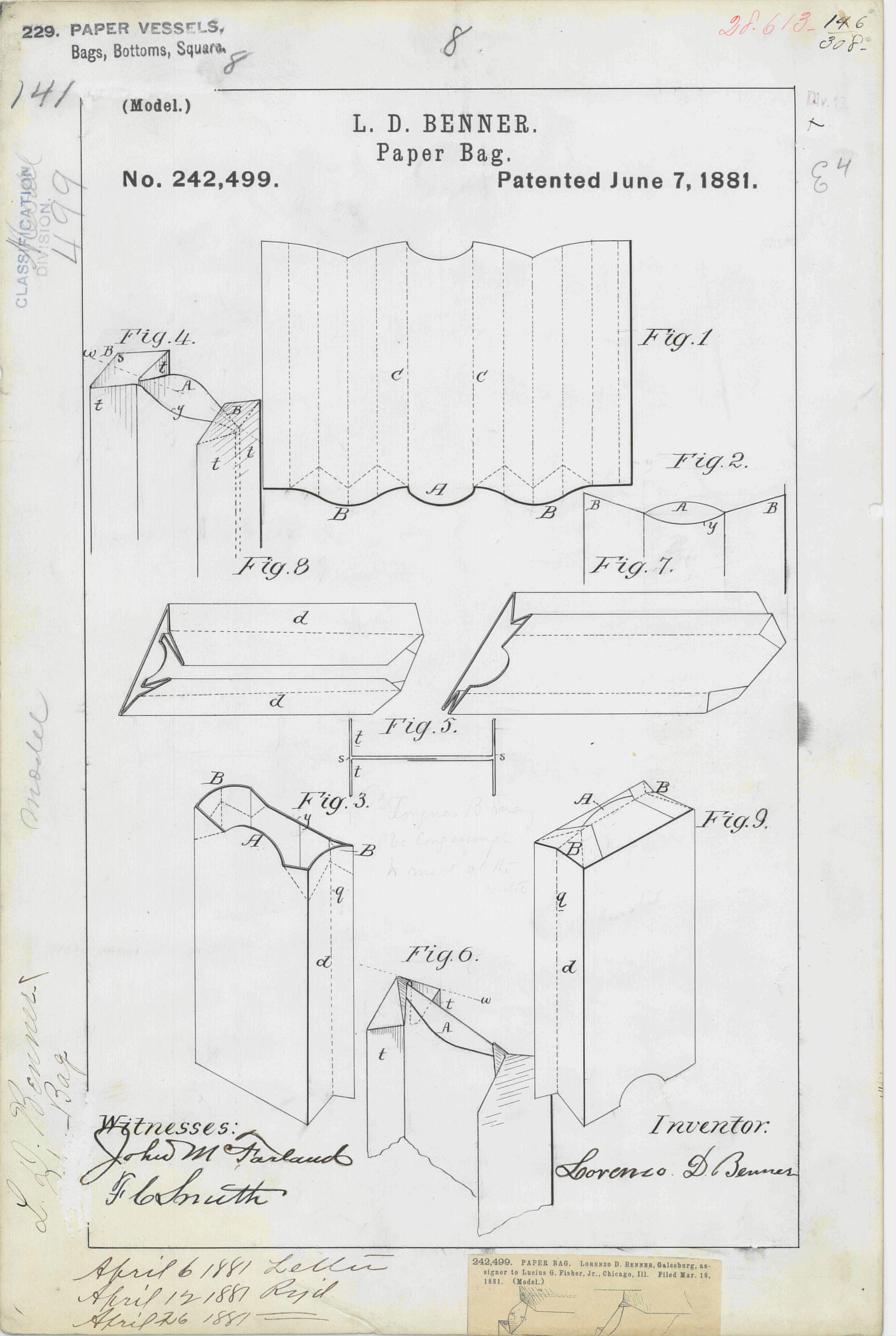

While we look at what was invented or improved upon during this time period, it’s interesting to see early concepts for items that we now might take for granted. For example, when using a paper bag, you’re not likely to think about its history and various designs, but we can see these earlier ideas in patent drawings.

RG241_PATENTUT_242499

RG 241, Utility Patent Drawings, 242499

It’s also interesting to compare older object designs with their modern counterparts to see how they’ve evolved over time. An example of this is a baseball catcher’s equipment. Looking at a patent from 1904, it’s clear how much this design has changed:

RG241_PATENTUT_755209_01

RG 241, Utility Patent Drawings, 755209, Sheet 1

Because the patents cover such a wide range of objects and devices, you are likely come across something unique while looking through the records, like the following patent:

RG241_PATENTUT_118435

RG 241, Utility Patent Drawings, 118435

Or this patent for a mustache guard:

RG241_PATENTUT_435748

RG 241, Utility Patent Drawings, 435748

Throughout the series of drawings, there are some easily recognizable and notable names and objects that appear on patents. For instance, Thomas Edison’s drawings show early designs for a light bulb:

RG241_PATENTUT_264652

RG 241: Utility Patent Drawings, 264652

A number of Nikola Tesla’s patent drawings are also seen in the series, like this one for his electric motor:

RG241_PATENTUT_459772_01

RG 241, Patent Utility Drawings, 459772, Sheet 1

RG241_PATENTUT_459772_02

RG 241, Patent Utility Drawings, 459772, Sheet 2

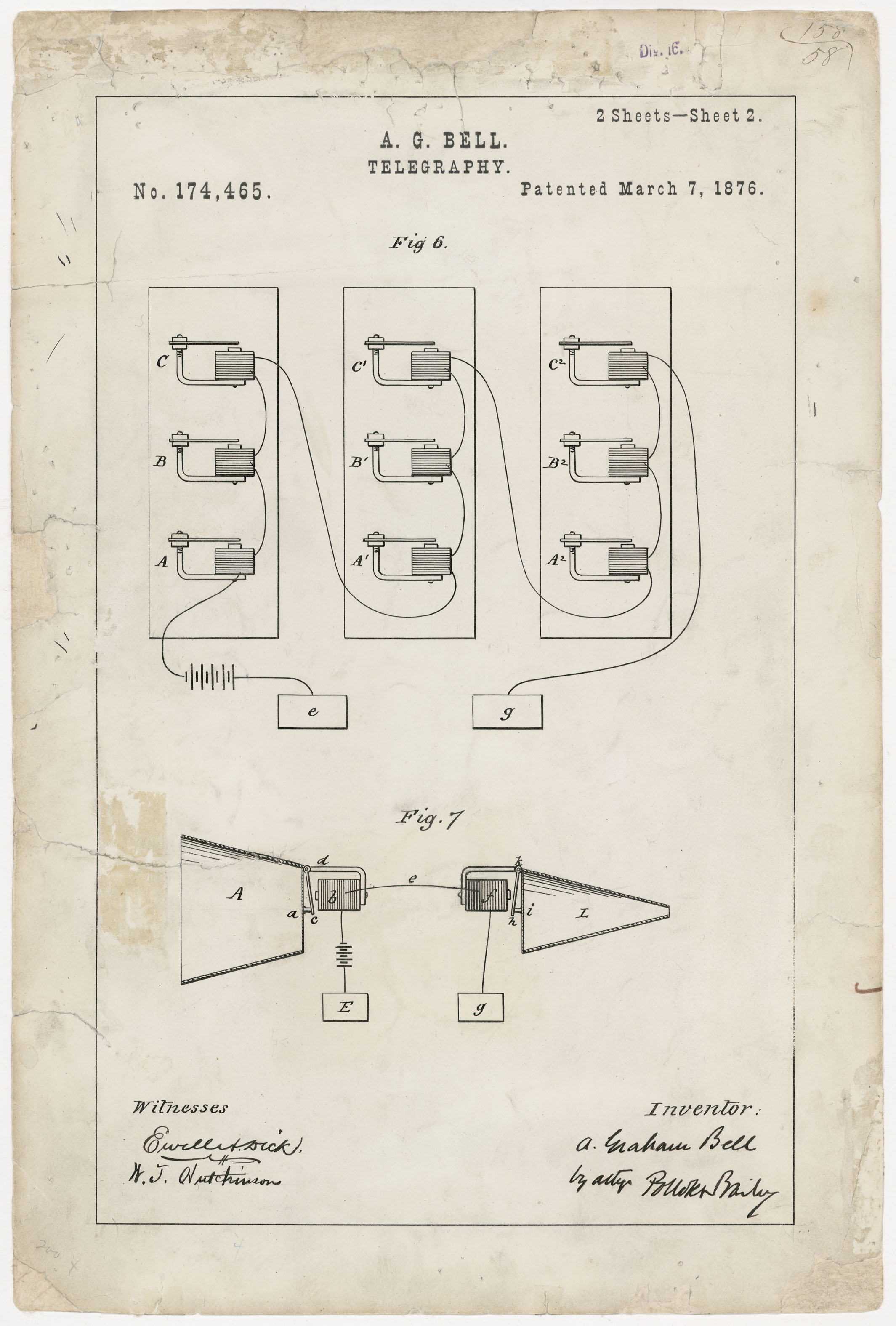

We also hold the patent for Alexander Graham Bell’s telephone:

Patent Number 174, 465Alexander Graham Bell Record Group

RG 241, Utility Patent Drawings, 174465, Sheet 1

RG241_PATENTUT_174465

RG 241, Utility Patent Drawings, 174465, Sheet 2

Also found in the series is Abraham Lincoln’s patent for a buoying system for boats:

Rediscovery ID number 0728507285_2010_001

RG 241, Utility Patent Drawings, 6469

No matter what you’re looking for in the Utility Patent Drawings, you are sure to come across something interesting that offers a glimpse into our history and culture. To see more patents that have been digitized, you can visit our catalog here.
